Evolutionary Computation

Evolution of Neural Networks

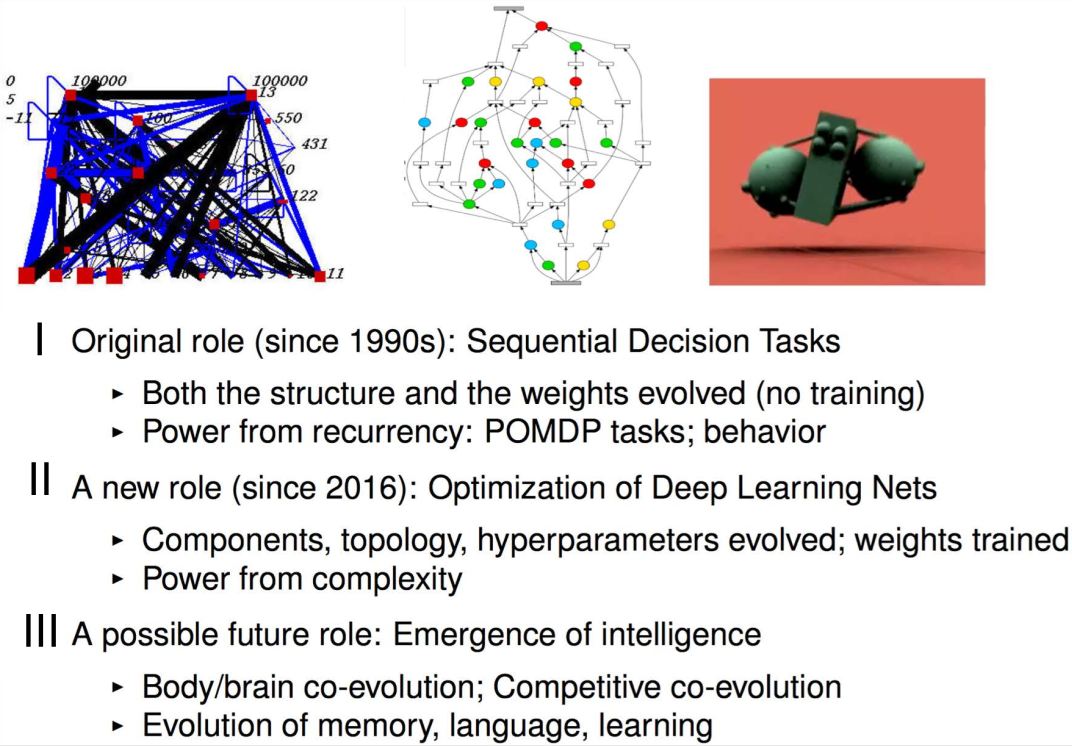

Motivations for neuroevolution



Miikkulainen, Risto. "Evolution of neural networks." Proceedings of the Genetic and Evolutionary Computation Conference Companion. 2017.

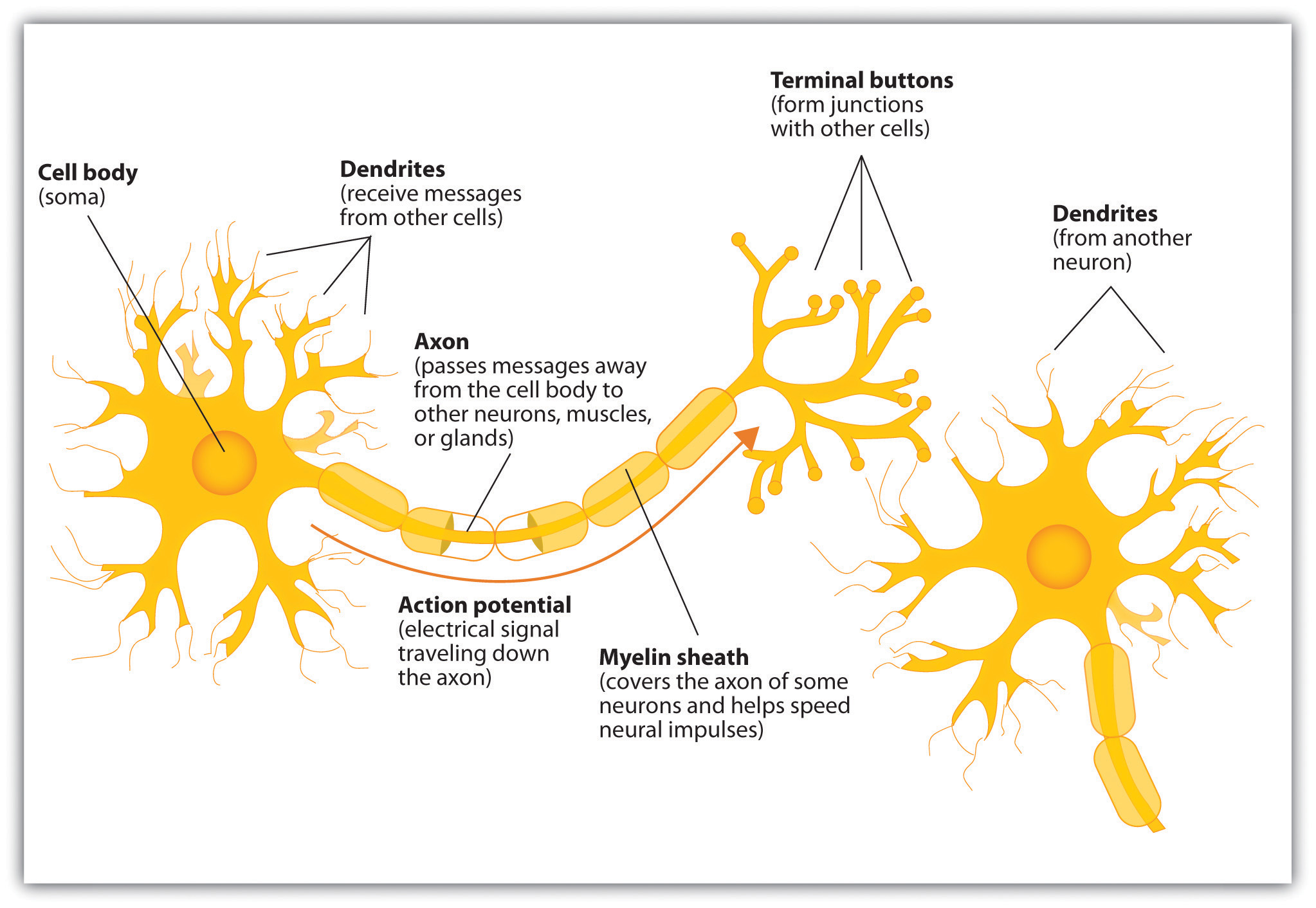

Neuron Model

C. Stangor and J. Walinga. Introduction to Psychology.
[BC open textbook collection]. Flat World Knowledge, L.L.C., 2015.

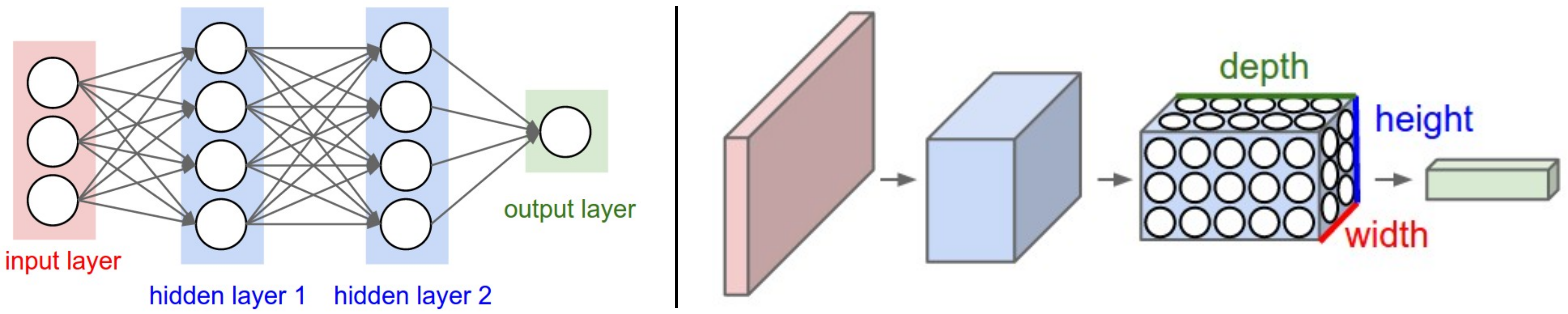

Artificial Neural Networks


cs231n.github.io

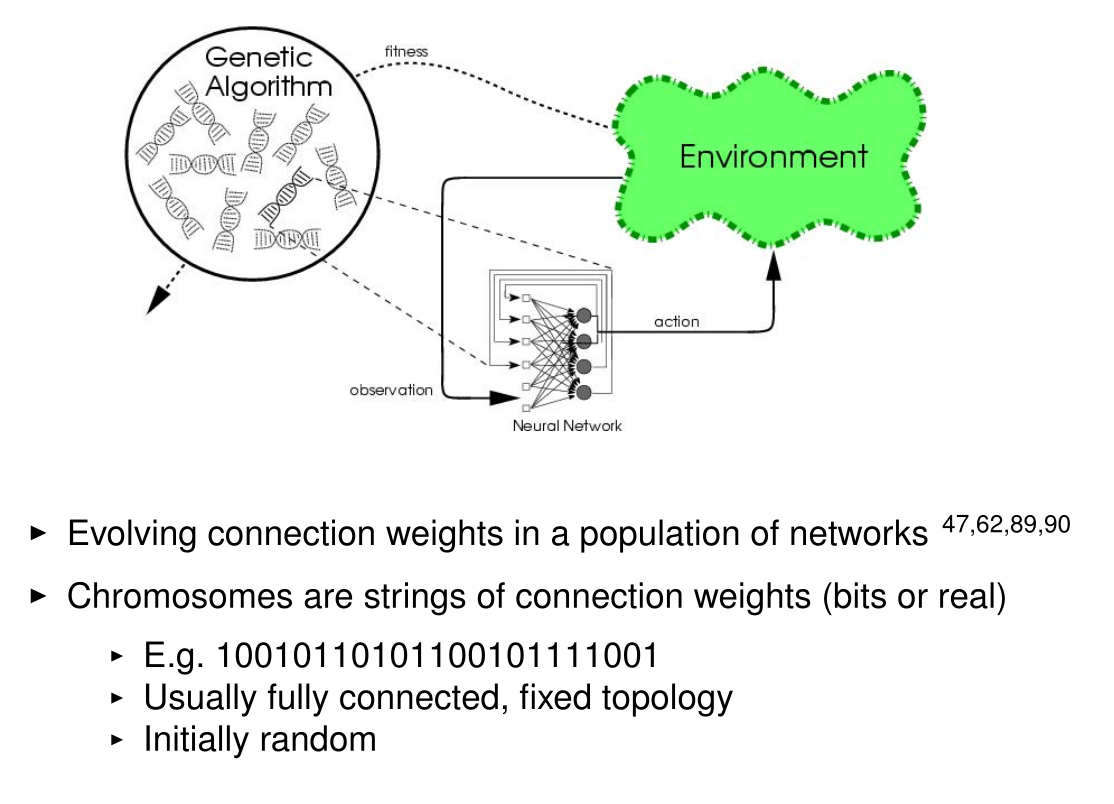

Neuroevolution


Gruau, Frederic, and Darrell Whitley. "Adding learning to the cellular development of neural networks: Evolution and the Baldwin effect." Evolutionary computation 1.3 (1993): 213-233.

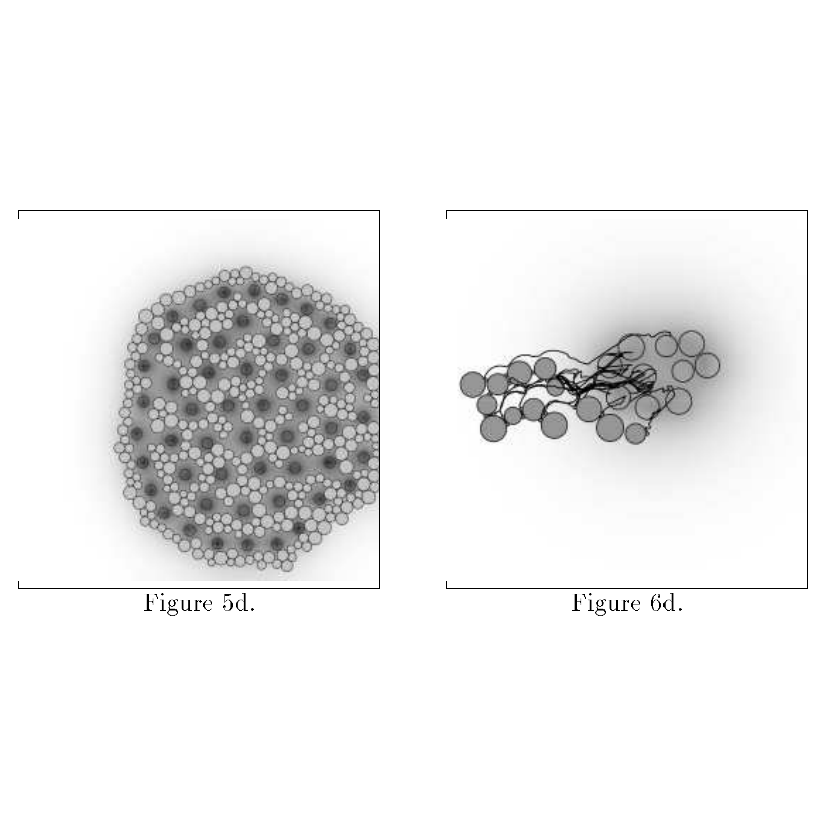

Fleischer, Kurt, and Alan H. Barr. "A simulation testbed for the study of multicellular development: The multiple mechanisms of morphogenesis." 1994

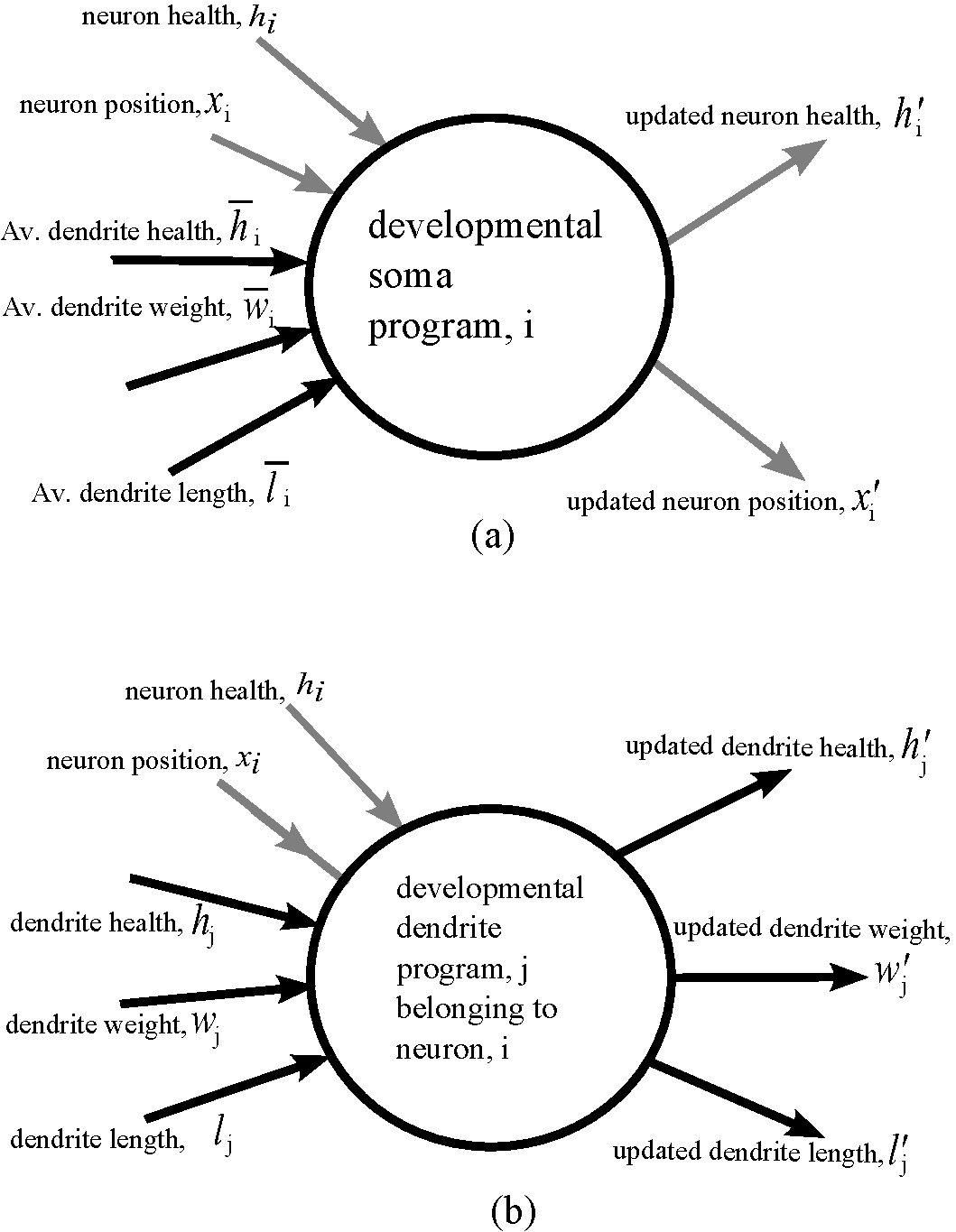

Neuroevolution


Stanley, Kenneth O., and Risto Miikkulainen. "Evolving neural networks through augmenting topologies." Evolutionary computation 10.2 (2002): 99-127
Miller, Julian F., Dennis G. Wilson, and Sylvain Cussat-Blanc. "Evolving Developmental Programs That Build Neural Networks for Solving Multiple Problems." Genetic Programming Theory and Practice XVI. Springer, Cham, 2019. 137-178.

Neuroevolution


Miikkulainen, Risto. "Evolution of neural networks." Proceedings of the Genetic and Evolutionary Computation Conference Companion. 2017.

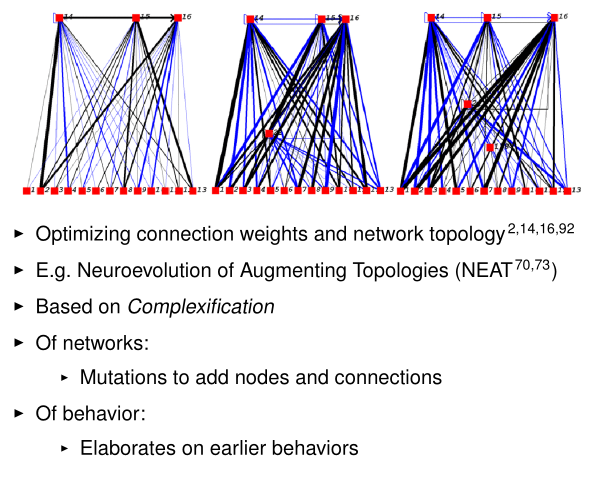

Evolution of Neural Structure


Miikkulainen, Risto. "Evolution of neural networks." Proceedings of the Genetic and Evolutionary Computation Conference Companion. 2017.

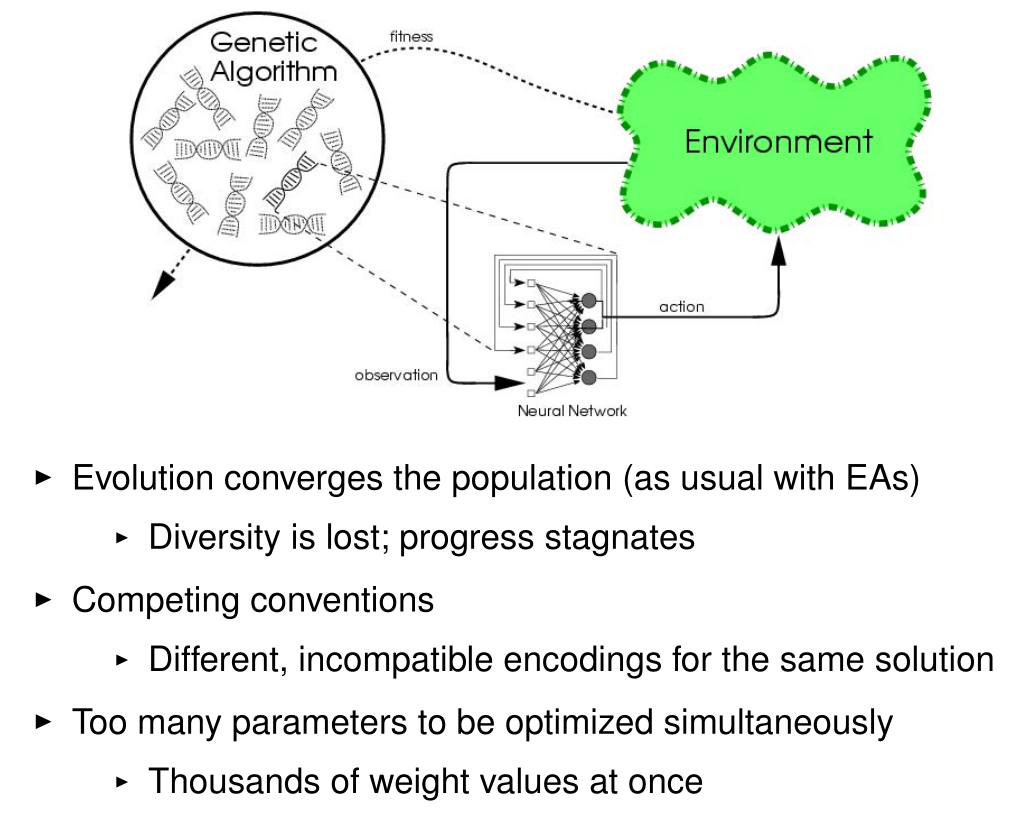

Problems with Neuroevolution


Miikkulainen, Risto. "Evolution of neural networks." Proceedings of the Genetic and Evolutionary Computation Conference Companion. 2017.

Direct Encoding



Neural network structure or weights are directly encoded in genome: NEAT

Stanley, Kenneth O., and Risto Miikkulainen. "Evolving neural networks through augmenting topologies." Evolutionary computation 10.2 (2002): 99-127

What is NEAT?

NeuroEvolution of Augmenting Topologies (NEAT)

Evolves both:
  • Network weights
  • Network topology (structure)


Starts from simple networks and gradually complexifies

Key idea: begin minimal and add complexity only when needed

Genome Representation

Neural networks are encoded as genomes

Two types of genes:
  • Node genes (neurons)
  • Connection genes (synapses)


Each connection gene contains:
  • Input node
  • Output node
  • Weight
  • Enabled / disabled flag
  • Innovation number


Direct encoding: each gene directly maps to the network

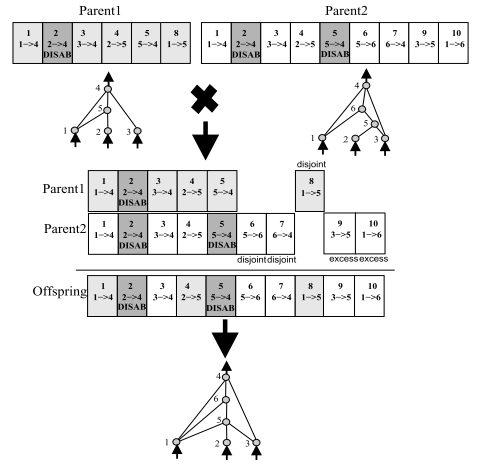

Innovation Numbers

Problem: how to align genes during crossover?

Solution: innovation numbers
  • Each new structural mutation gets a unique ID
  • Tracks historical origin of genes


During crossover:
  • Matching genes → same innovation number
  • Disjoint genes → non-overlapping
  • Excess genes → beyond the other parent


Enables meaningful crossover between different topologies

Structural Mutations

NEAT evolves topology through mutations

Add connection:
  • Connect two previously unconnected nodes


Add node:
  • Split an existing connection
  • Disable old connection
  • Insert new node
  • Add two new connections


Complexity increases gradually while preserving learned behavior

Speciation

Problem: new structures are initially weak

Solution: speciation

  • Group similar genomes into species
  • Competition happens within species


Benefits:
  • Protects innovation
  • Maintains diversity
  • Avoids premature convergence

Fitness Sharing

Individuals share fitness within their species

Adjusted fitness:
  • Penalizes crowded species
  • Rewards smaller species


Outcome:
  • Maintains multiple strategies
  • Encourages exploration

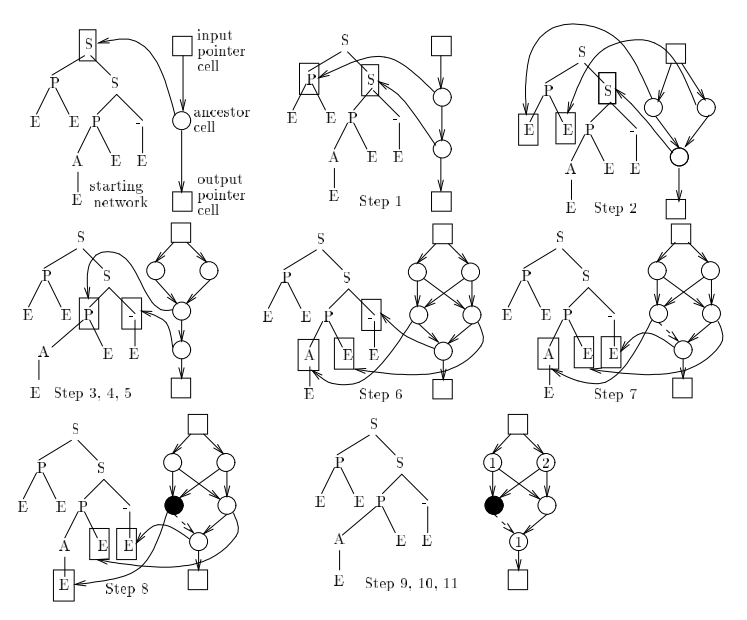

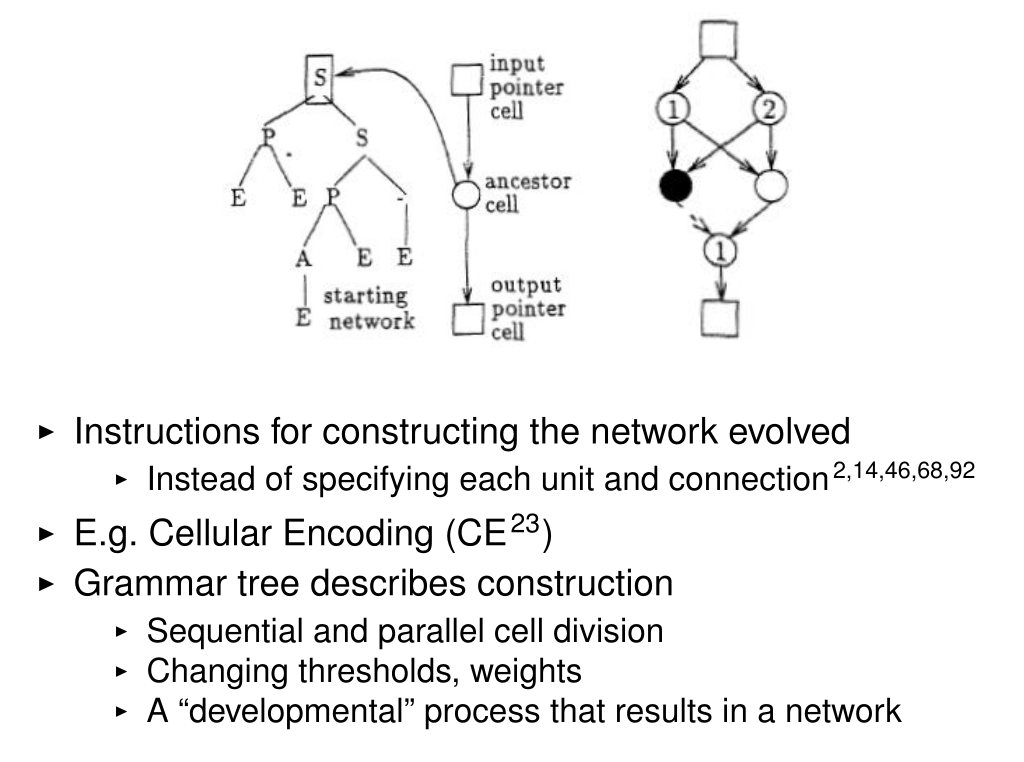

Indirect Encoding


Neural network structure or weights are the result of developing the genome: Cellular Encoding, HyperNEAT
Miikkulainen, Risto. "Evolution of neural networks." Proceedings of the Genetic and Evolutionary Computation Conference Companion. 2017, from Gruau, Frederic, and Darrell Whitley. "Adding learning to the cellular development of neural networks: Evolution and the Baldwin effect." Evolutionary computation 1.3 (1993): 213-233.

Direct vs Indirect Encoding

Direct encoding (NEAT):
  • One gene = one component
  • Explicit representation


Indirect encoding:
  • Genes describe rules or patterns
  • Network is generated (not stored)


Advantages:
  • More compact genomes
  • Regular and repeating structures
  • Better scalability

Limitations of Direct Encoding

Direct encoding struggles with:
  • Large networks
  • Regular patterns (e.g., symmetry)
  • Repeating structures


Because each connection must be encoded individually

Indirect encoding addresses these limitations

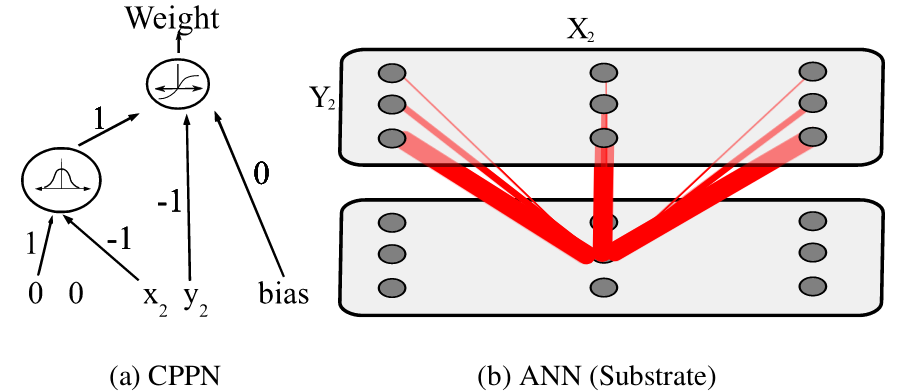

What is HyperNEAT?

Extension of NEAT using indirect encoding

Evolves a function instead of a network:
- Called a CPPN (Compositional Pattern Producing Network)

The CPPN:
  • Takes coordinates as input
  • Outputs connection weights
  • Generates connectivity patterns instead of listing connections

How HyperNEAT Works

Each neuron is assigned coordinates in space

For each pair of neurons:
  • Input: (x₁, y₁, x₂, y₂)
  • CPPN outputs connection weight


This creates:
  • Structured connectivity
  • Spatial regularities


Example patterns:
  • Symmetry
  • Repetition
  • Local connectivity

Why HyperNEAT is Powerful

Exploits geometry of the problem

Advantages:
  • Scales to large networks
  • Produces regular patterns
  • Reuses structure automatically


Compared to NEAT:
  • NEAT: explicit connections
  • HyperNEAT: generated connections

Takeaway

Direct encoding:
  • Precise but not scalable


Indirect encoding:
  • Compact and expressive
  • Captures patterns and regularities


HyperNEAT = NEAT + generative encoding of connectivity

Evolution of Deep Neural Networks



Weight optimization only using Evolutionary Strategies

Salimans, Tim, et al. "Evolution strategies as a scalable alternative to reinforcement learning." arXiv preprint arXiv:1703.03864 (2017).

Evolution Strategies for Deep Networks

Optimize weights of deep neural networks

No topology evolution:
  • Architecture is fixed
  • Only parameters are evolved


Key idea:
  • Treat neural network as a black box
  • Search directly in parameter space
  • Yet another numerical optimization problem

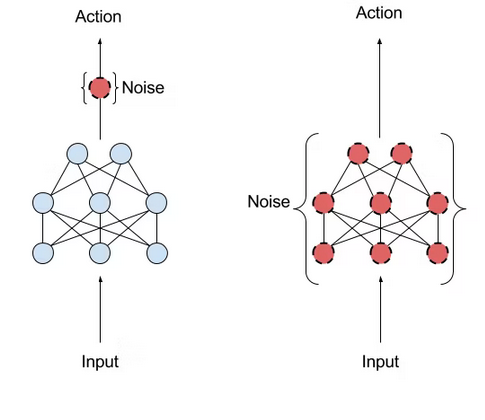

How It Works

Start with parameters θ

At each iteration:
  • Sample random noise ε
  • Evaluate θ + ε
  • Compute rewards (fitness)
  • Update θ toward "better" directions


No gradients required

Key Advantages

Simple and highly parallelizable

  • Each evaluation is independent
  • Scales to thousands of workers
  • Enables massively parallelism (GPU friendly)


Works well for:
  • Reinforcement learning tasks
  • Sparse or delayed rewards


Can outperform gradient-based RL in some settings

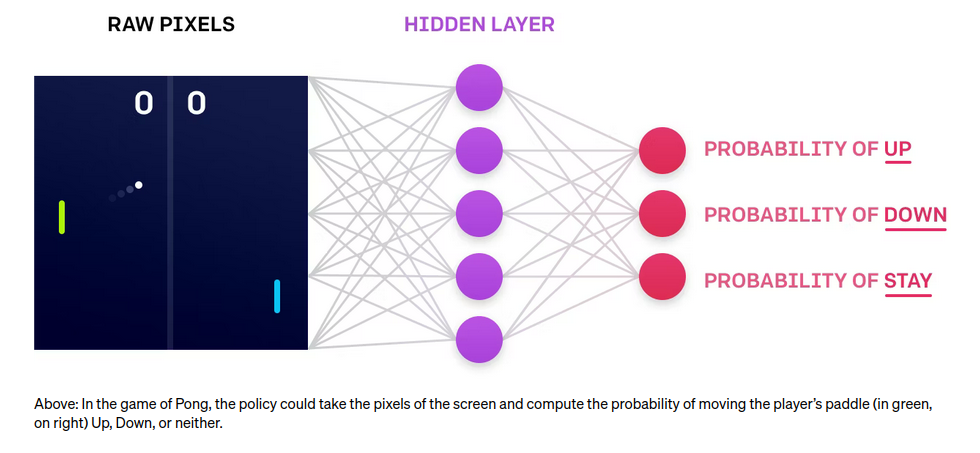

Applications

Trained agents directly from pixels

Examples:
  • Atari games (e.g. Pong)
  • Continuous control tasks


Observations:
  • Robust policies can emerge
  • Noise can still produce structured behavior

Limitations

High-dimensional search space
  • Millions of parameters
  • Requires many evaluations


No structure learning:
  • Architecture must be predefined


Sample inefficiency compared to gradients

NEAT vs HyperNEAT vs ES

Evolution Strategies:
- Optimize weights only

NEAT:
- Evolves weights + topology

HyperNEAT:
- Evolves generative patterns of connectivity

Different levels of evolution: parameters → structure → patterns

Takeaway

Evolution can scale to deep learning

Three perspectives:
  • Evolution Strategies → optimize parameters
  • NEAT → evolve structure
  • HyperNEAT → evolve patterns


Choice depends on problem structure and scalability needs
