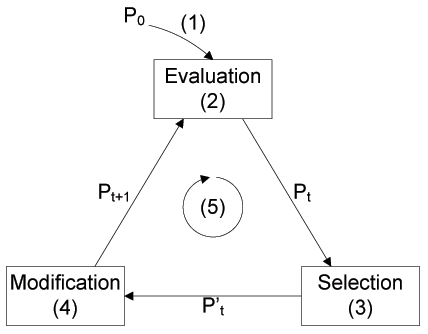

Evolutionary Computation
Cartesian Genetic Programming
Overview
- Cartesian Genetic Programming
- MuJoCo Environments
- Controlling MuJoCo robots with CGP
- Arcade Learning Environment
- Atari playing with CGP

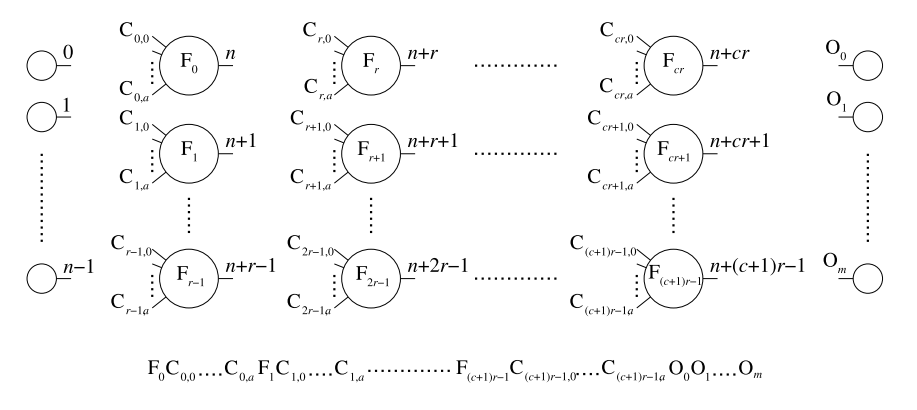

Cartesian Genetic Programming
A graph-based GP method based on functional node indexing with Cartesian coordinates.
Miller, Julian Francis. "Cartesian genetic programming: its status and future." Genetic
Programming and Evolvable Machines 21 (2020): 129-168.
Floating Point Cartesian Genetic Programming
[Wilson, 2018]

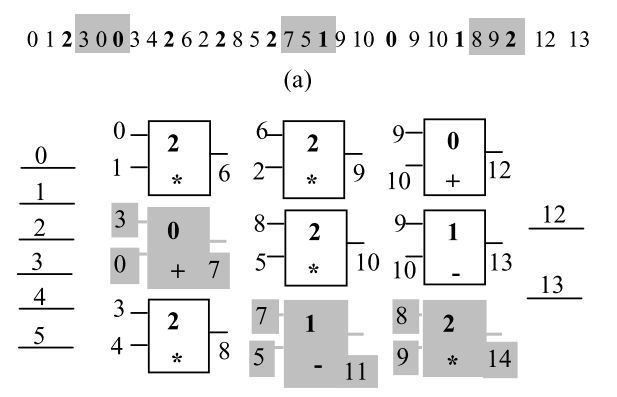

CGP: Junk nodes
[Miller, 2001]

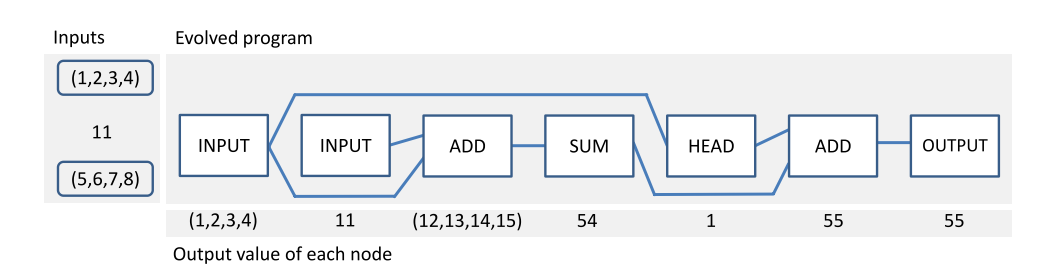

Mixed-Type CGP
[Harding et al., 2012]

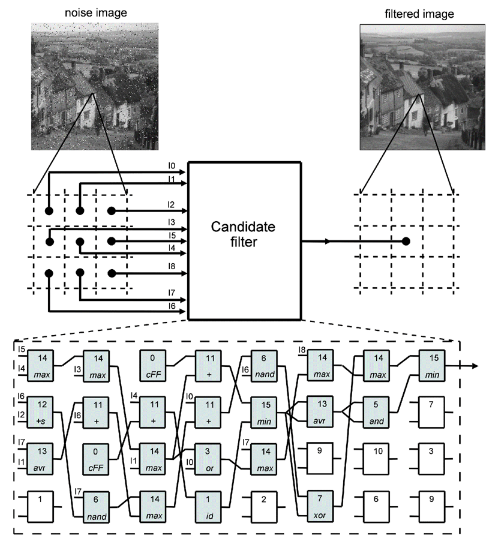

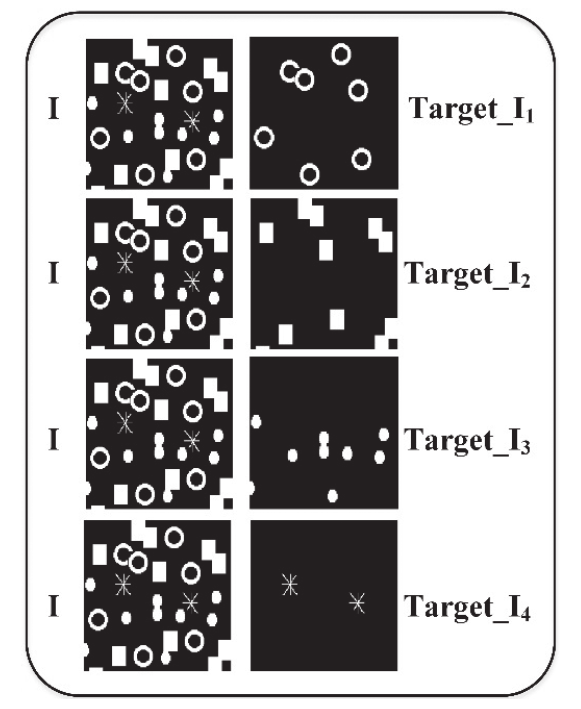

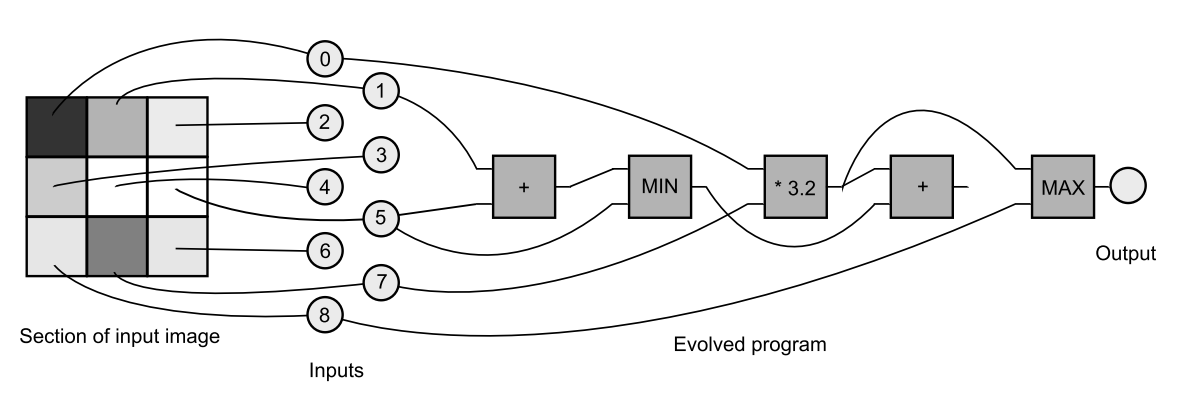

Image-Processing CGP
[Harding et al., 2013]
Cartesian Genetic Programming
[Harding et al., 2013]
Cartesian Genetic Programming
[Paris et al., 2015]
MuJoCo Control Tasks
[Todorov et al., 2012]

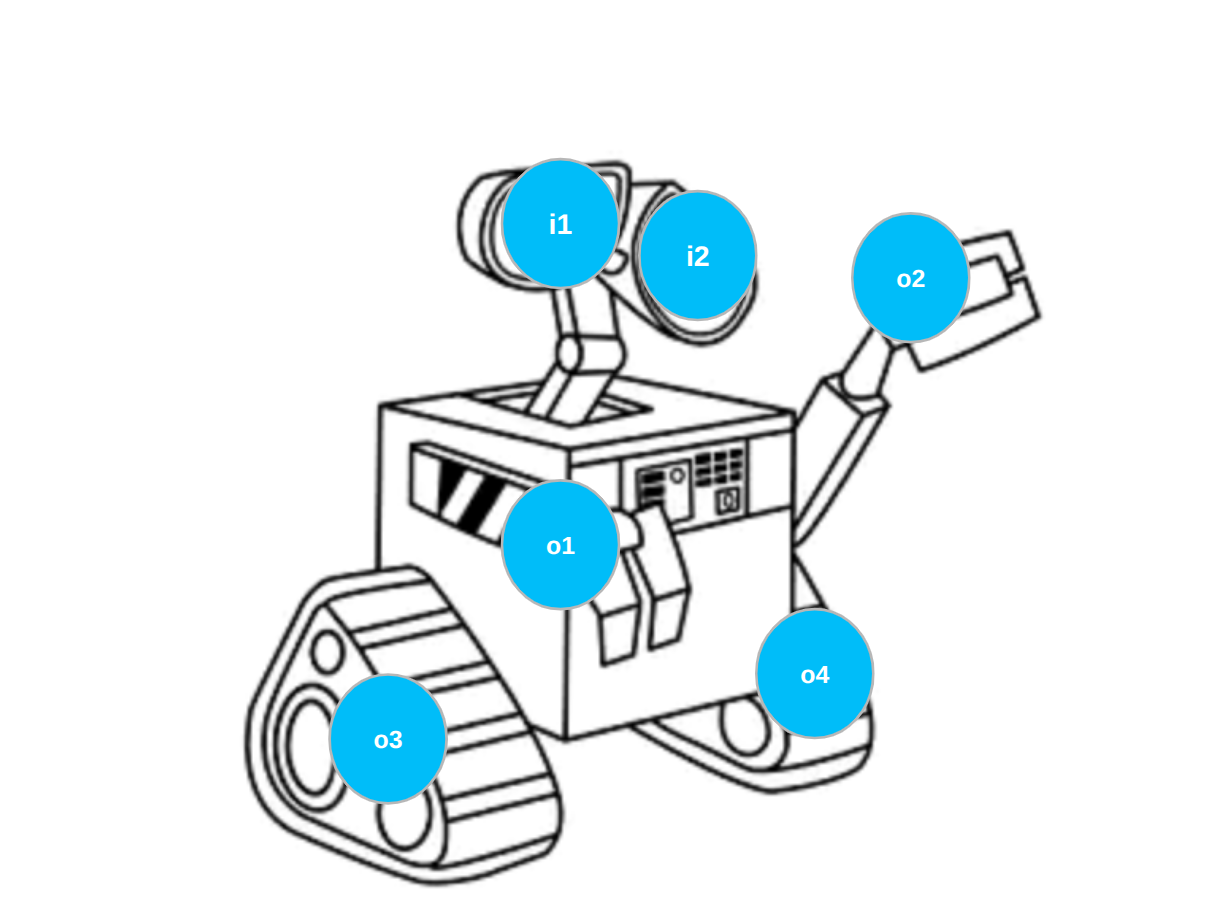

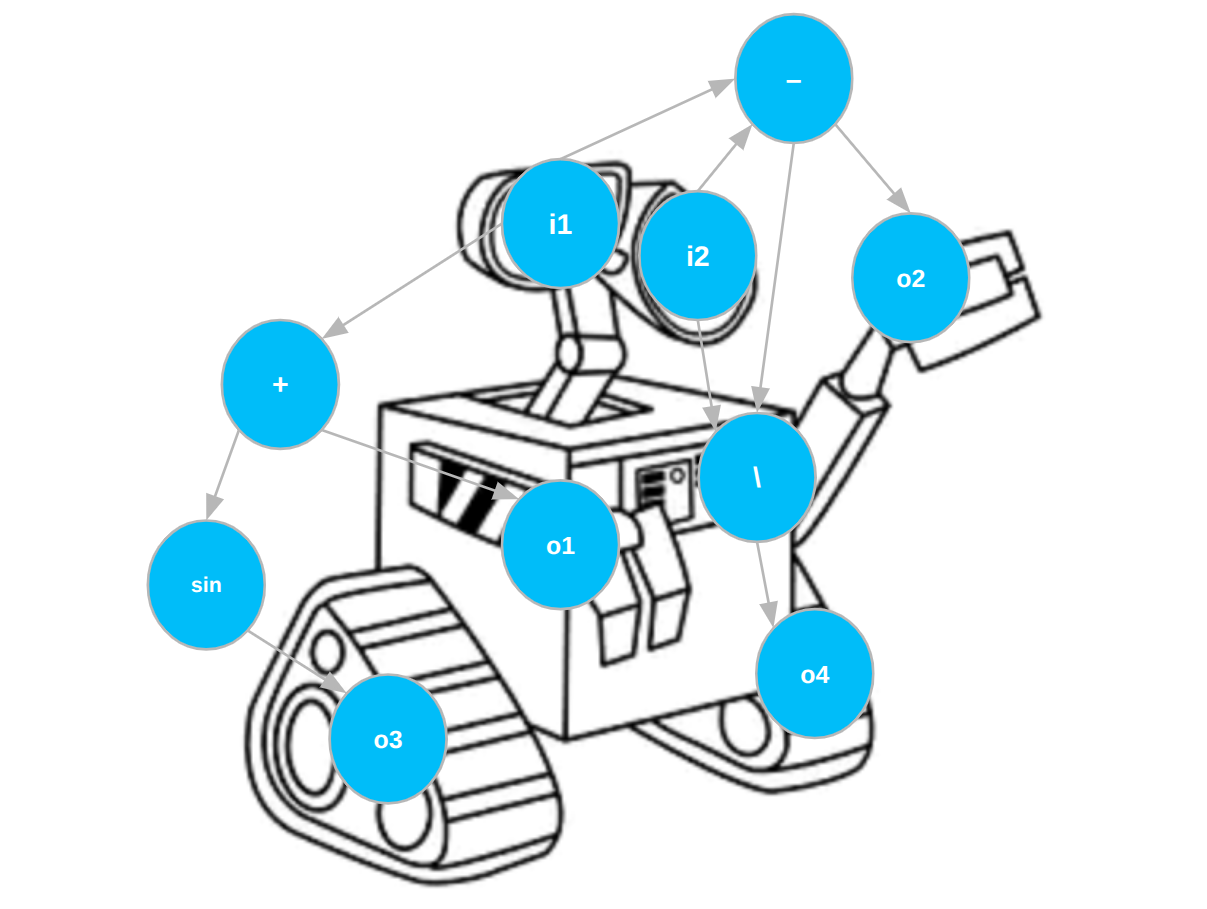

CGP for robot control
GA (population size of 100 individuals), running on GPU
Fitness: Total reward over 1 episode (e.g., how fast the robot moved)
CGP for robot control
CGP for robot control
CGP for robot control
CGP for robot control

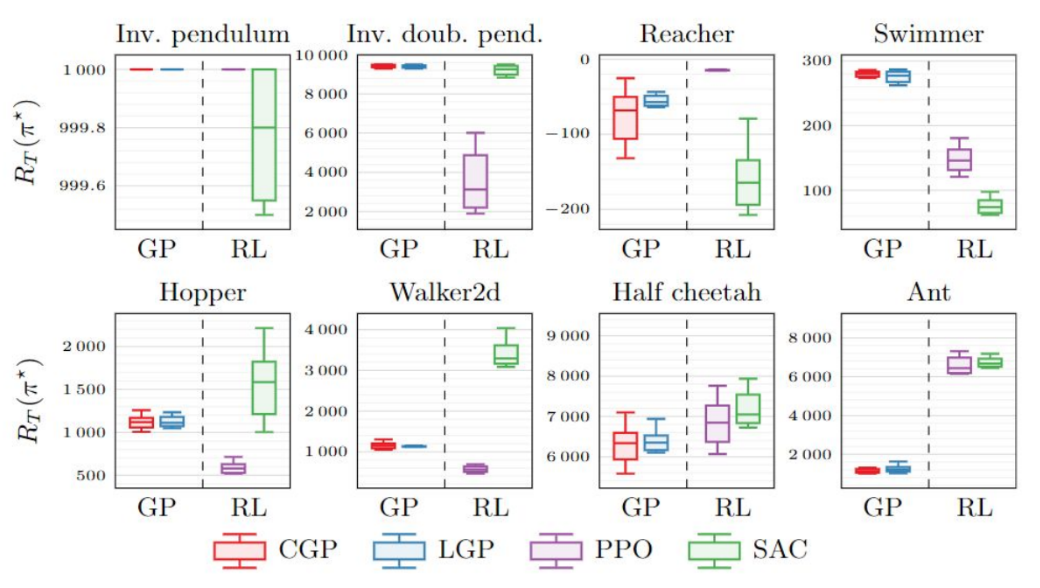

Results

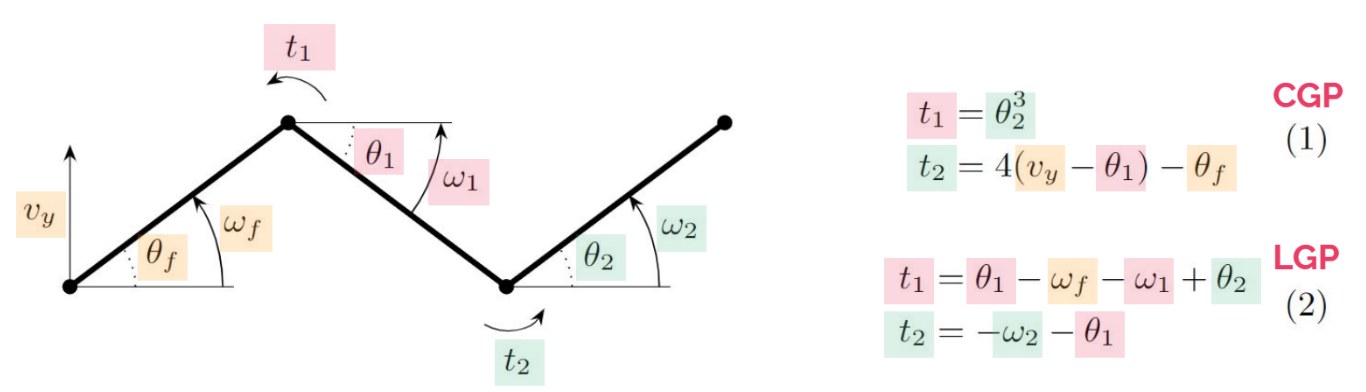

Interpreting a result
Interesting side finding
Result obtained removing the termination condition when the agent falls to the ground.

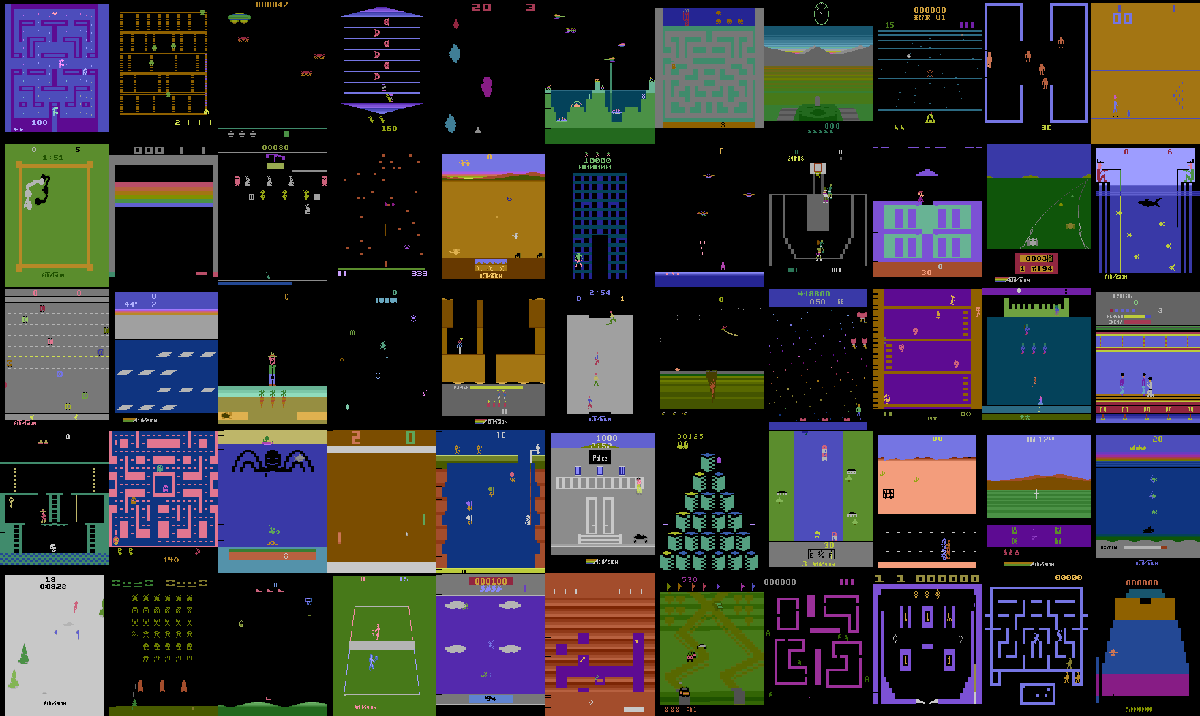

Arcade Learning Environment
[Bellemare et al., 2013]

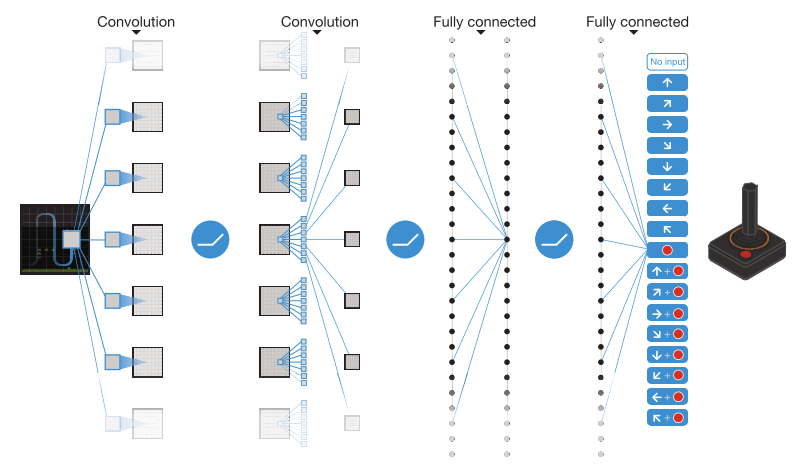

Deep reinforcement learning
[Mnih et al., 2015]

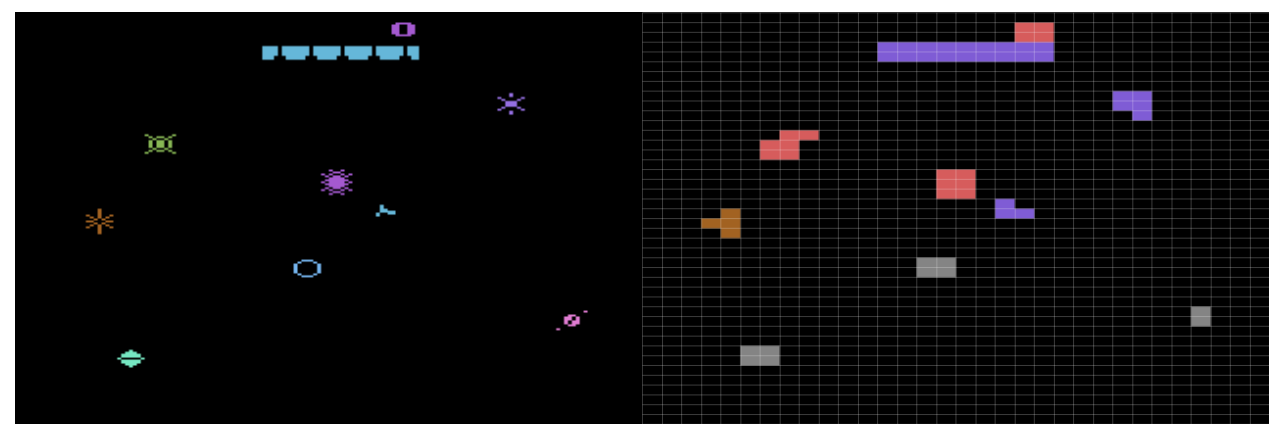

TPG: Decimal Feature Grid
[Kelly and Heywood, 2017]

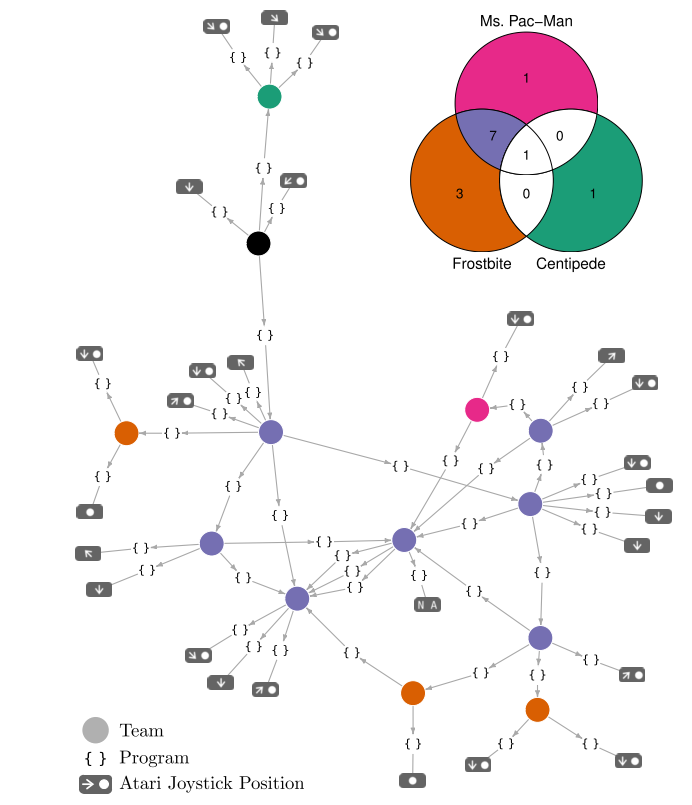

TPG: Multi-Task Learning
[Kelly and Heywood, 2017]
CGP for Atari playing
1+λ ES
Fitness: Total reward over 1 game
CGP for Atari playing

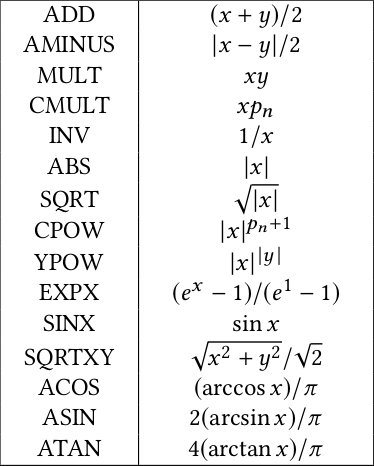

Mathematical functions

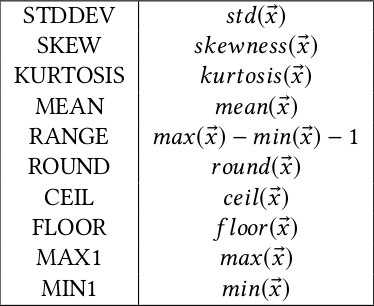

Statistical functions

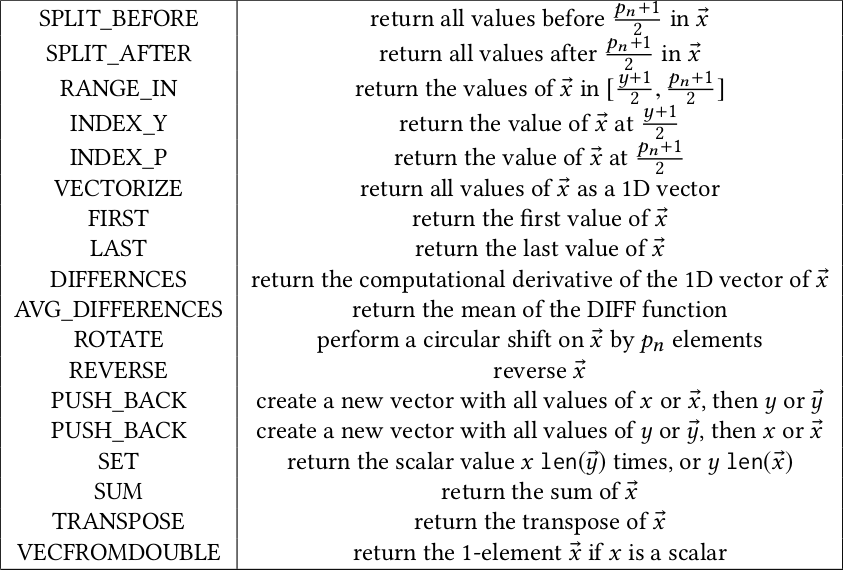

Array functions
Results
| Game | Human | Double | DQN | Prioritized | A3C:FF | HyperNEAT | CGP |
|---|---|---|---|---|---|---|---|
| Asteroids | 13157 | 1193.2 | 2035.4 | 1654 | 4474.5 | 1694 | 9412 |
| Defender | 27510 | 33996 | 21093.5 | 56533 | 14620 | 993010 | |
| Gravitar | 2672 | 200.5 | 297 | 218 | 303.5 | 370 | 2350 |
| JamesBond | 406.7 | 573 | 835.5 | 3511.5 | 541 | 5660 | 6130 |
| Kangaroo | 3035 | 11204 | 10334 | 10241 | 94 | 800 | 1400 |
| Krull | 2395 | 6796.1 | 8051.6 | 7406.5 | 5560 | 12601.4 | 9086.8 |
| Ms. Pacman | 15693 | 1241.3 | 2250.6 | 1824.6 | 653.7 | 3408 | 2568 |
| Private Eye | 69571 | -575.5 | 292.6 | 179 | 206.9 | 10747.4 | 12702.2 |
| Skiing | -11490.4 | -11928 | -10852.8 | -10911.1 | -7983.6 | -9011 | |
| Solaris | 810 | 1768.4 | 2238.2 | 1956 | 160 | 8324 | |
| YarsRevenge | 6270.6 | 25976.5 | 5965.1 | 7157.5 | 24096.4 | 28838.2 |
Two years later: Agent 57 outperforms many of these
Centipede
| Human | Double | DQN | Prioritized | A3C:FF | A3C:LSTM | TPG | HyperNEAT | CGP |
|---|---|---|---|---|---|---|---|---|
| 11963 | 3853.5 | 4881 | 3421.9 | 3755.8 | 1997 | 34731.7 | 25275.2 | 24708 |
Kung Fu Master
| Human | Double | DQN | Prioritized | A3C:FF | A3C:LSTM | TPG | HyperNEAT | CGP |
|---|---|---|---|---|---|---|---|---|
| 22736 | 30207 | 24288 | 31244 | 28819 | 40835 | 7720 | 57400 |
Boxing
| Human | Double | DQN | Prioritized | A3C:FF | A3C:LSTM | TPG | HyperNEAT | CGP |
|---|---|---|---|---|---|---|---|---|
| 4.3 | 73.5 | 77.3 | 68.6 | 59.8 | 37.3 | 16.4 | 38.4 |
